4 Watt LED Helios 3
|
Model No. |
Product Name |
CCT |
Lumens |
Efficacy |
Watt |
Description |
Container Quantity |
|
6850-P03-CR5E27 S/R |
LED Helios 3 E27 |
Cool White |
456 |
101.09 |
4 |
Number of LED: 3 Cree Chips Input Voltage: Universal Power Consumption: 3.8W IP54 |
20': 500 cartons 40':1000 cartons (100 pcs per carton) |
|
6850-P03-CR5G10 S/R |
LED Helios 3 GU10 |
456 |
101.09 |
||||
|
6850-R03-CR5B22 S/R |
LED Helios 3 B22 |
456 |
101.09 |

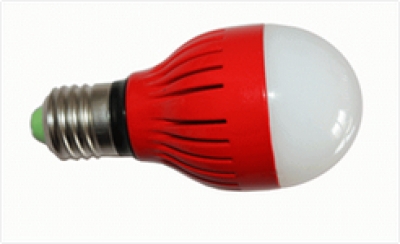

LED Helios Light Bulb
for Home and Office
LED Retrofits for conventional Light Bulbs with E27, B22 or GU10 fittings
U-Tron’s ruggedized Helios Series LED light bulbs uses high power Cree LEDs to bring energy savings and a healthy light to your home and office. They can be easily retrofitted to virtually any light fitting that uses E27, Bayonet or GU10 lamp holders.
Helios Helios Dimmable
Technical Specifications:
|
Model Name |
Helios Cool White |
Helios Warm White |
Helios Dimmable Cool White |
Helios Dimmable Warm White |
|
Model Number |
6850-P03-CR4 |
6850-P03-WQ5 |
6852-P03-CR4 |
6852-P03-WQ5 |
|
Number of LEDs (*) |
3 |
3 |
3 |
3 |
|
LED Type (*) |
Cree XPG R4 |
Cree XPG Q5 |
Cree XPG R4 |
Cree XPG Q5 |
|
Power Consumption |
3.8Watts |
3.8Watts |
3.8Watts |
3.8Watts |
|
Color Temperature |
>5500k |
2500-3100K |
>5500k |
2500-3100K |
|
Color Rendering Index |
85 |
77 |
85 |
77 |
|
Power factor |
0.55 |
0.55 |
0.96 |
0.96 |
|
Efficacy (lm/w) |
105 |
86 |
105 |
86 |
|
Retrofit CFL |
20 Watt |
13 Watt |
20 Watt |
13 Watt |
|
Retrofit Incandescent |
60 Watt |
40 Watt |
60 Watt |
40 Watt |
|
Available Sockets |
E27, B22, GU10 |
E27, B22, GU10 |
E27, B22, GU10 |
E27, B22, GU10 |
|
Total Flux (Clear Cover) |
390 lm |
321 lm |
390 lm |
321 lm |
|
Lights Dimensions |
(D) 56.00mm x (H) 106.00mm |
(D) 56.00mm x (H) 106.60mm |
(D) 59.00mm x (H) 122.50mm |
(D) 59.00mm x (H) 122.50mm |
|
Warranty |
3 Years |
3 Years |
3 Years |
3 Years |
|
Net Weight |
135 Grams |
135 Grams |
125 Grams |
125 Grams |
* Other configuration available upon request
