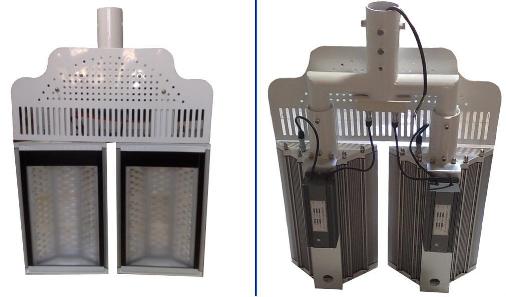

Lucas Twin Head 180
68TH-180-CR5
By clicking the photo you can dowload the datasheet
The requirement for higher brightness is met by our new Lucas Twin Head luminaries. This model also solves the problems faced with wider poles with over 80mm diameter. Lucas TH can deliver over 60LUX from a 12 meter high pole. Added with the function of twistable lamps on side by side can take away the zebra effect often seen in street lighting. The new no hassle modular design brings easy installation and wiring techniques.
LTH 180 Technical Specifications
| Part Number | Description | Total Lumen | Watt | CCT (°K) |
| 68TH-180-CR5 | Lucas TH 180 |
25020 | 220 | 5500 |
| LED Type | Cree R5 |
| Power Rating: | Universal |
| Temperature rating: | -40 ºC to 45 ºC |
| IP Rating | IP 65 |
| Warranty on Workmanship | 36 months |
| Guarantee on LED < 50% loss (Which ever comes first) |
60 Months or 50,000 Hrs |
How the Twin Head works?
The 2 lights are nothing but our regular Lucas III 90. By using the new reflector cup, we are preventing the light from shining on to the residential side. That means more light is going to the road side. Circular pipe (A) is where the Twin Head Base mounted on the street poles, the circular pipe can accommodate an existing pole from 55mm-85mm diameter. The two circular pipe (B) is where the Lucas III-90 to be mounted, literally all Lucas range of street lights can be mounted on the Twin Head Base. There is an elongated hole across the pipe that serves as the stopping mechanism from falling. On the Twin head base, the two connectors (C) is a built-in wiring mechanism that makes the installation or maintenance a worry-free on connecting the lights to the Twin Head Base. The power supply is an external water proof, CE and UL certified power supply.
Twin Head Base weighs 6.55 Kg
300 watts external power supply weighs 1.8 Kg

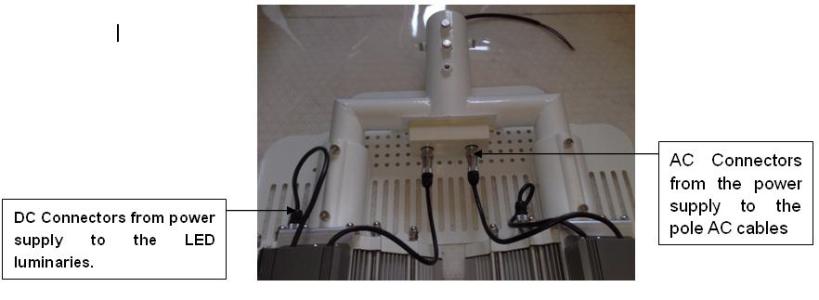

Wiring:
External Power supply has the advantage to make the wirings easy.
Advantages of Lucas Twin Head:
- Larger illumination on the road.

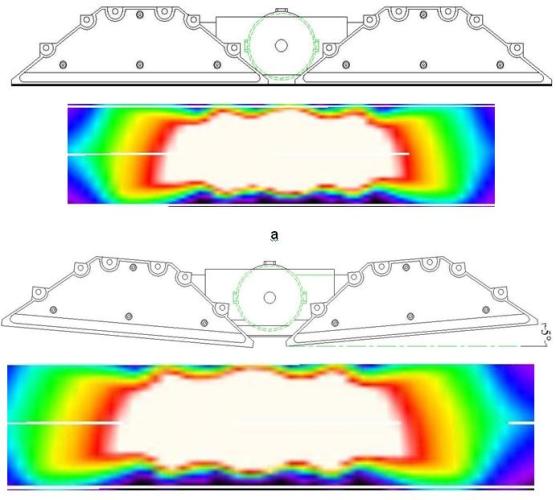

- Ability to twist the lights to focus on the desired area.
- Easy installation and maintenance – 3 piece advantage.
- Tool less wiring.
- Can reach over 50 lux at 15 meter high pole.
- Exceeds the brightness of existing Halogen, Mercucy vapor, CFL lamps.
- Advantage on high lamp poles.
- Can meet wide lamp pole distances.
- External power supply – separate compartment for power supply, you can change the power supply by not disturbing the optics.
- You can save money by spreading the lamp poles.
- No need for using lenses which cause degrading over time and accumulate dirt since its cavity is facing upward.
- Using special reflectors by avoiding the lights to illuminate on the house side.
- Can fit any diameter poles ranging from 50mm-80mm diameter.

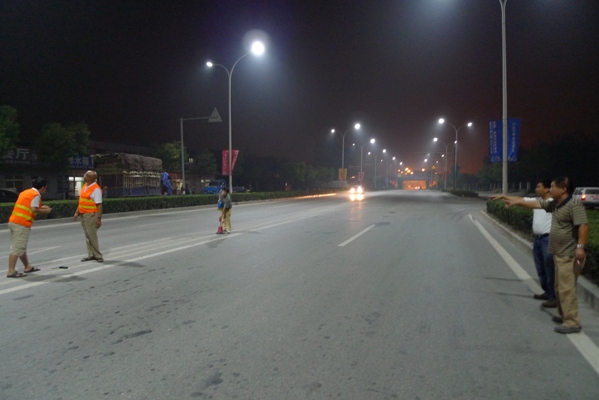

Actual photos from the site:

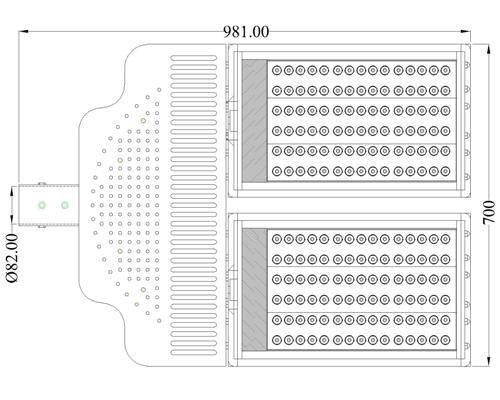

Engineering Drawing:
