Lucas Trident 84

Lucas Trident Street Lights for main roads.

Part #68TD-084-CR5

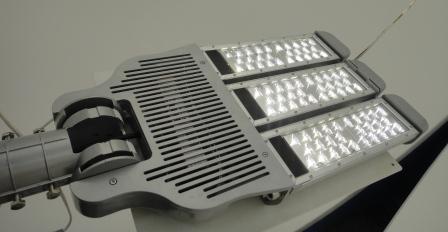

The U-Tron Lucas Tridents are the new addition to the Street Lights solutions U-Tron offer to our customers. They are easy to install and easy to adjust the tilted angle. The LED chamber is separated from the Driver chamber so you don't have to open the LEDs when you attach the power cord to the lamp. Tridents uses the U-Tron proprietary reflectors specially designed for the street lights to achieve maximum output just on the streets and perfect cut-off from the street to neighboring residential areas. Since the LEDs do not have lenses, it will minimize the yellowing and accumulation of dirt in between the lenses and the LEDs, which are the main 2 disadvantages of using lens.

The pointing angle of the outer tridents can be manually adjusted (0 to 15 degree) to achieve the best light distribution your customer disires.

At lower heights you will need about 10 degree tilting on both sides of the trident. Any heights over 12 Meters a mere 1 or 2 degree tilting will give you an exceptional even light distribution and sufficient coverage for 45 meters of Pole to Pole distance. All the right angles comes handy with every Tridents you purchase...

Lucas Trident will give you a very flexible light distribution control. Our older models were using concaved design but the Tridents are developed with the convex design. At these low angels the glare drivers usually complain will not be a problem.

Low energy consumption and high illumination makes this the ideal street light for any road, street, residential area or park.

Technical Data

Lucas Trident 84 Packaing Information

Lucas Trident 84 Container Information

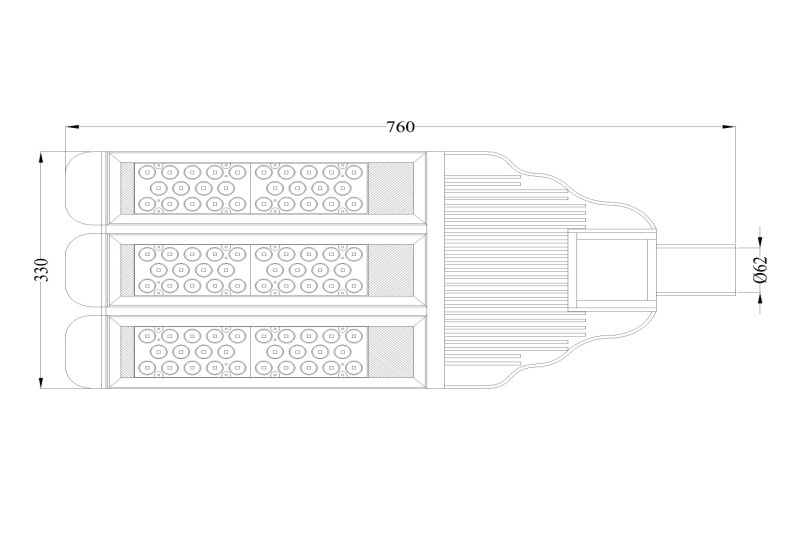

Enginering Drawing

Light Distribution Characteristics
